Titan Paint Sprayer Tip Size Chart

You will have to make more passes to cover the same area. All about spray tips, tip guards, and how it all comes together.

The Ultimate Guide To Paint Spray Tips Sizing Charts 2019

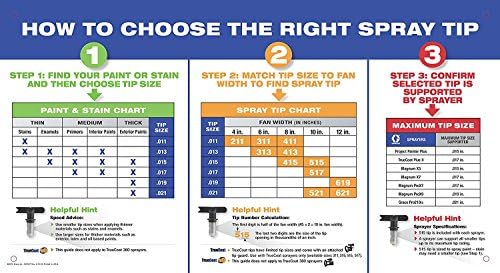

The first digit is half of the fan width, the 5 in 517 equals a 10 inch spray fan width (5 x 2 = 10) the last two digits are the size of the tip opening in thousandths of an inch, the 17 in 517 means the tip hole size is.017 inch;

Titan paint sprayer tip size chart. Then the second and third numbers 17 represents the size of the bore, i.e. Fits fine finish flat tip guard only. Fan width of a spray pattern is measured at 12.

So this tip has an approximate 10 fan when the tip is 12 from the surface to be painted. The last two digits are the orifice size in thousands. In this example, that would be the white tip nozzle.

What size spray tip do i need? Taking our 0.808 gallons per nozzle rate and using the teejet sizing chart for this model of spray tip, we scroll down the capacity in one nozzle column to the nozzle size most closely matching our desired specifications. Click on the images or text below to download a high quality pdf version of each chart, starting from the top with us, 15″ spacing, then us, 20″, then us 30″, then metric, 50 cm.

Various sizes to choose from! As wear occurs, the pattern size decreases and the orifice size increases. Breakdown of spray tip numbers:

These spray tips come in the widest variety of sizes used to spray coatings such as. The spray pattern chart demonstrates what happens as a tip wears. You can find and buy your airless spray tips here.

If (typeof (addreqlistsjs6_3074457345618259713) == undefined || addreqlistsjs6_3074457345618259713 == null || !addreqlistsjs6_3074457345618259713) { addreqlistsjs6_3074457345618259713 = new addtorequisitionlistsjs ( 10151, 11052, . The gently feathered jet spray ensures better coverage with overlapping of the strokes and avoids hard edges. Check out our articles on various types of paint sprayers:

Sprayer tips, needles, & nozzles. There is no standard rate of tip wear due to the variation of the abrasiveness of all coatings. Up to 55% less overspray with maximum control;

When sizing tips, it is important to know the fan width and the flow rate of the paint you want to apply. If you multiply it by 2 the result is the approximate fan size when the tip is about 12 from the surface being sprayed. Tr 1 high pressure tips.

The size of the spray tip opening relates to the thickness of the material you’re spraying; The revolutionary spray technology of titan's line of tips puts paint where it belongs while decreasing overspray and extending the life of the pump. If you’re not using a chart, you’ll need.

The first digit 5 represents the width of the spray pattern, i.e. As a general guide, these are the recommended airless tip sizes: The nozzle opening, which in this case is 0,017″.

The size of the airless spray tip you need depends on the type of paint you are spraying. How to choose a graco and/or titan spray tip for your airless paint sprayer.
